Open pole electric gate valve
Our company is a professional manufacturer of electric gate valves. Botou Valve Company has many years of professional experience and technology in the production of electric gate valves. The quality is excellent. Welcome to call for consultation products and discuss cooperation.
Product details: Our company is a professional manufacturer of electric gate valves. Botou Valve Company has many years of professional experience and technology in the production of electric gate valves. The quality is excellent. Welcome to contact us for product consultation and cooperation.
Summary of Z945X Electric Soft Sealed Gate Valve
Various electric actuators can be equipped according to the requirements of users to realize remote control and automatic control. In addition to the advantages of elastic seat gate valve, it also has the characteristics of sensitivity, reliability and easy installation. Electric soft sealing gate valves can be widely used in water, sewage, construction, petroleum, chemical industry, food, medicine, textile, power, ships, metallurgy, energy systems and other fluid pipelines as regulating and closing devices.
2. Characteristics of Z945X Electric Soft Sealed Gate Valve:
The gate plate of the electric soft sealing gate valve is glued with good coverage performance to ensure the reliability of the seal in the right size. The bottom of the valve is flat-bottomed with the same size as the water pipe, which does not cause debris deposition. In addition, the valve is sprayed with epoxy resin to prevent corrosion and rust. It can be used not only for drinking water system, but also for sewage system.
3. Main Technical Parameters of Z945X Electric Soft Sealed Gate Valve
Nominal Path DN50-DN1200
Nominal Pressure PN10/PN16
Working temperature 0-80 degrees
Test standard GB13927
Applicable price water, oil, etc.

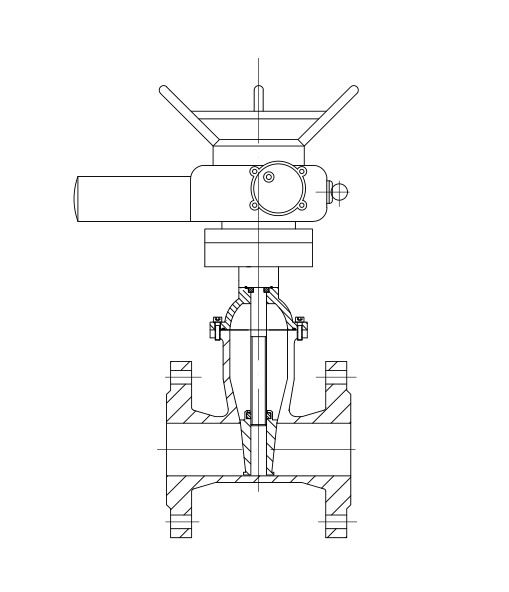

4. Structural diagram of Z945X electric soft sealing gate valve:
V. Major Component Materials of Z945X Electric Soft Sealed Gate Valve
Component Name Material
Valve body ductile iron
Ductile Iron for Valve Cover
Stems 420, 201, 304, 316
Brass and Ductile Iron for Stem Nuts
Valve disc ductile iron + EPDM
Bracket Cast Steel and Ductile Iron
Electric head can be designated by customers.
